Lithiumate™ - Wireless Advisor

This product has been discontinued

The Lithiumate Wireless Advisor is a device that allows any nearby WiFi enabled device (such as a smartphone) to display the status of a Lithiumate BMS (Lite, HD or Pro) through any browser.

The main display shows:

  • SOC, pack current and pack voltage, with analog meters
  • Minimum and maximum cell voltage
  • Minimum and maximum cell temperature
  • Power source (e.g.: AC power, ignition)
  • Status (OK or alert)
  • Charge OK, discharge OK

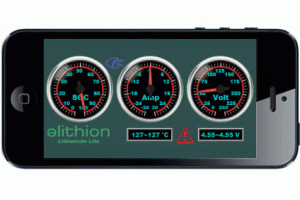

WiFi screen
Main screen

Additional dialogs show:

  • Histogram of cell voltages
  • Histogram of cell temepratures
  • Peak values and energy used (trip meter)

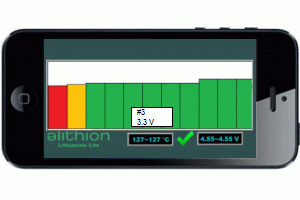

WiFi screen: histogram
Cell voltage histogram

As well as:

  • Plot of all main parameters
  • Data capture, suitable for analysis in a spreadsheet
  • About page (rev levels, up time, cycle number...)
  • Warning and fault details

For safety reasons, wireless control and configuration of the BMS is not possible.

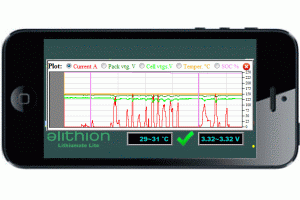

WiFi screen: plot
Plot of data vs/ time

Compatibility

Devices
Operating systems
Browsers
  • Smartphones
  • Tablets
  • Laptops
  • Notebooks
  • Desktops
  • Windows
  • Linux
  • Android
  • iOS (iPhone, iPad)
  • Apple OSX
  • Chrome
  • FireFox
  • Safary
  • Android
  • Opera
  • IE9

Demo

Click the controls of this live demostration to experience this simple yet intuitive and complete interface.

Live demo not available in your browser.

Installation and specifications

The Lithiumate Wireless Advisor is connected to the Lithiumate BMS through a USB cable (an RS232 to USB adapter is required for the Lithiumate Pro) and is powered by a user-provided 12 V supply.

Please see the manual for installation instructions and specifications.

The contributions of Peter Chave to this project are gratefully acknowledged.

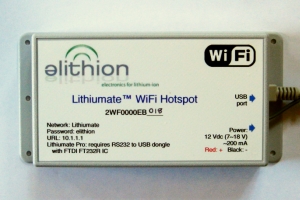

Lithiumate Wireless Advisor Click picture to enlarge
Lithiumate Wireless Advisor

Ordering

This product is no longer available.
