Traction packs

Battery packs for EVs, HEVs, PHEVs

Elithion designs and manufactures custom, large Li-ion battery packs for vehicle prototypes.

  • For EVs, HEVs, PHEVs
  • 1 to 10 units, 60 days typical turnaround for 1st article
  • Using technology that best matches technical requirements and budget
    • Prismatic cells for lowest cost, medium power applications
    • Power cells (pouch or small cylindrical) for high power applications
    • Your company's cells for demonstration purposes
  • Includes a Lithiumate Pro BMS for maximum safety
  • Available to any location in the contiguous United States.
  • Options:
    • Integral charger, J1772 charge inlet compatibility
    • 12 V DC-DC
    • Liquid or forced air cooling
    • Contactors with precharge, post-discharge
    • Compatibility with existing platforms (e.g.: Prius PHEV)
    • J1939 CAN messages

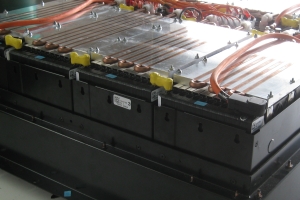

Internal cooling detail

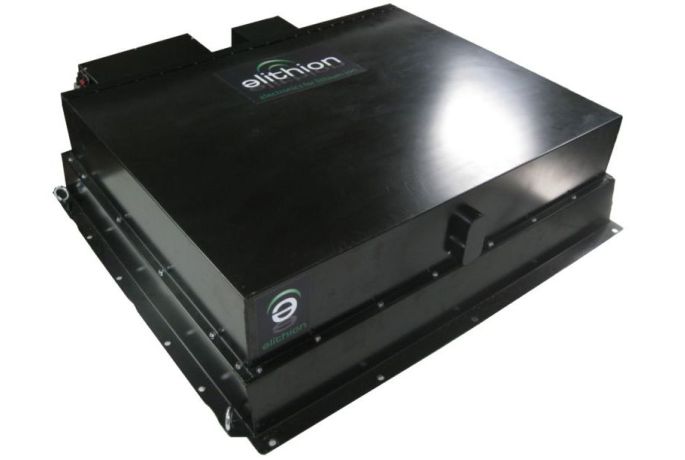

back to top 20 kWh PHEV pack

  • 20 kWh, 60 Ah
  • 350 Vdc
  • 500 Apk, 175 kWpk
  • Liquid cooled
  • 3 kW charger, J1772 interface
  • 1.8 kW DC-DC to 12 Vdc
  • 98 % efficient at 250 A
  • Pouch cells from a major US manufacturer
  • Lithiumate Pro BMS
  • Shipped 73 days after order

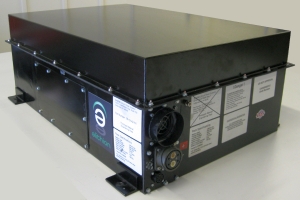

back to top 10 kWh EV pack

  • 350 Vdc
  • 70 A continuous, 24.5 kW continuous
  • Air cooled
  • Lithiumate Pro BMS
  • Shipped 8 days after order
