Lithiumate™ Manual

index reference description_specs mechanical_specs 6DS0xx4E_mech_specs

SOC display mechanical specs

Mechanical Specifications for the 6DS0xx4E round, enclosed, SOC display

The display module is enclosed.
Item Value
Dimensions 1.82" dia; tall x 0.663" deep (46.2 x 16.8 mm)
Opening required in front panel 2.0" (50.8 mm) dia
Length of cable 10" (250 mm)

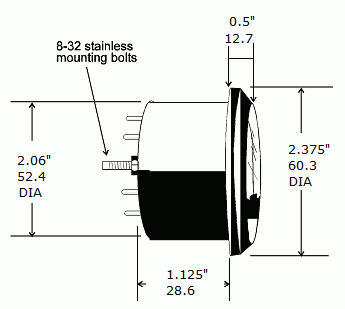

Board-level CAN display mechanical drawing
Enclosed, round CAN display
