Cell board, dual, double-ended prismatic cell

The 1PR2500 cell boards have been discontinued

Each of these cell boards handles two prismatic cells
(as opposed to a 1PR series, which handles one cell per board, or a 1PM series, which handles multiple cells per board).
  • Matched to double ended prismatic cells
  • Mounted on the top of a cell, through ring terminals, reaches to the other end with a long wire
  • One Cell Board per 2 cells (or 2 sets of multiple cells in parallel)
  • Flat shape: doesn't extend past current carrying bolts
  • A single communication wire is used between adjacent cells in a bank
  • These cell boards require a BMS master to form a complete BMS
Double ended prismatic cell double ended prismatic cell with cell board Double ended prismatic cell board

back to top Applications

Installation is straightforward:

  1. Mount cells side-by-side, with alternating polarity
  2. Connect them in series with straps
  3. Place a cell board in the well opposite the terminals, secure to the cells with double adhesive tape
  4. Connect the ring terminal at the end of the red wire to the most positive terminal of the 2 cells
  5. Connect the ring terminal at the end of the black wire to the most negative terminal of the 2 cells
  6. Connect the ring terminal at the end of the of the long yelow wire to either terminals at the far end of the cells (which are connected together by a strap)
  7. Connect adjacent cell boards with a communications wire: orange wire goes towards more positive cells, gray wire towards more negative cells

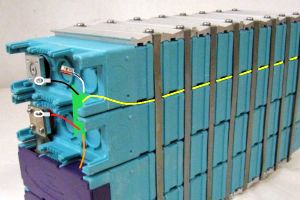

Prismatic boards in 4 applicationsClick picture to enlarge

back to top Compatibility

These standard Cell Boards are compatible with GBS cells type LPF-G200AH, LFP-GBS200AH, GBS-LFMP200AH

Note that there GMS makes 2 versions: 4 each M4.5 machine screws, or 1 each M6 bolt. Make sure you order the correct version of the cell board.

back to top Specifications

Specifications are in the Lithiumate™ Manual.

back to top Selection

Banking

Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)

Connectors

Right angle connectors are standard on end boards. Versions with straight connectors or no connectors are available with quick turnaround.

  • With right angle connectors - requires a slight extra mounting space beyond the cell bolts
  • With straight connectors - requires significant extra mounting space beyond the cell bolts
  • Without connectors (cables to the BMS controller are soldered directly to the cell board) - requires no extra space beyond the cell bolts

Part numbering

Part number: 1PR2500M:

  • 1 = Cell Board
  • PR = Prismatic
  • 2 =dual
  • 50 = cell length: 0.5 m
  • 0 = M4 bolt; 6 = M6 bolt
  • M = mid bank (available:M = mid-bank; P = positive end; N = negative end)

Models

These parts are made to order.
Click on a picture to enlarge.

Cell length [mm] Bolt size Positive end Mid-bank Negative end
500 M4.5
Cell boardClick picture to enlarge

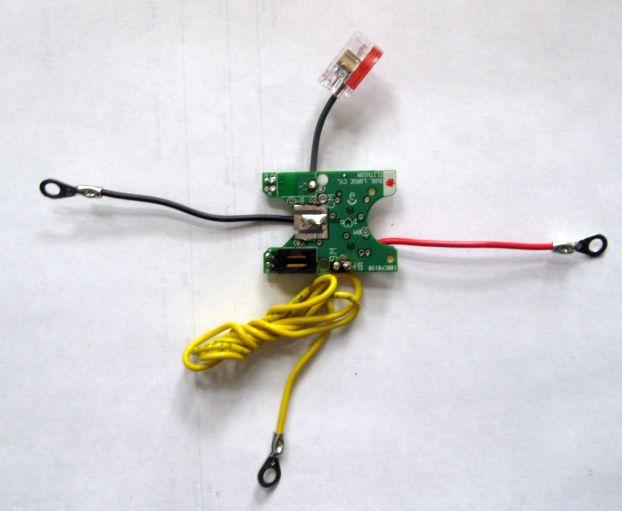

1PR2500P
Cell boardClick picture to enlarge

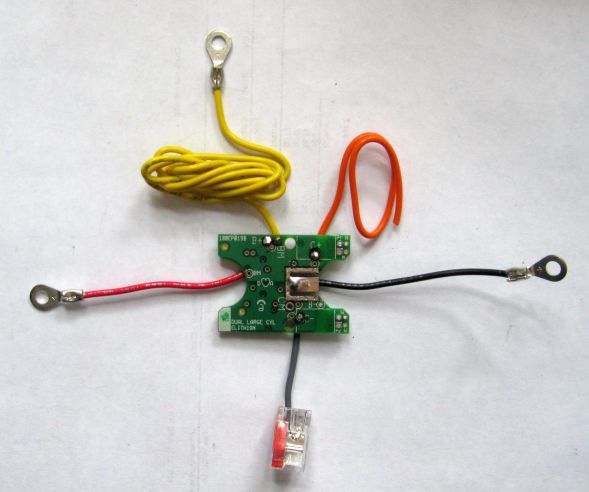

1PR2500M
Cell boardClick picture to enlarge

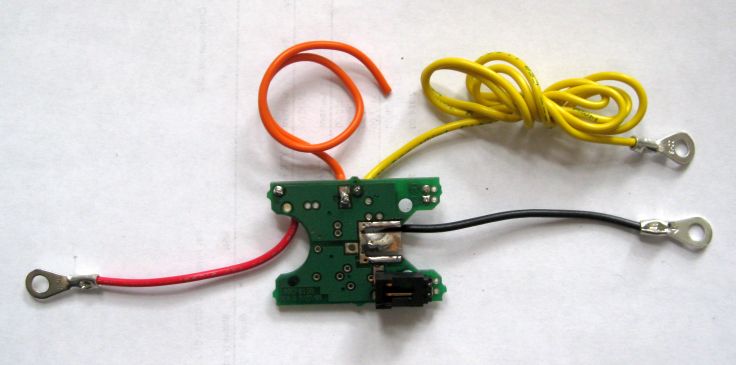

1PR2500N
500 M6
Cell boardClick picture to enlarge
1PR2506P
Cell boardClick picture to enlarge
1PR2506M
Cell boardClick picture to enlarge
1PR2506N

back to top Ordering

To order, please see the Lithiumate BMS ordering form.
