Lithiumate Lithium-ion BMS

Professional distributed Li-ion Battery Management System

Click to view the Lithiumate Pro technical info   Click to view the Lithiumate Lite brochure
This Li-ion Battery Management System monitors, evaluates, balances and protects a Li-Ion battery pack.
  • Off the shelf, plug-and-play Lithium-ion BMS
  • For professional applications: commercial grade, metal case (not sealed)

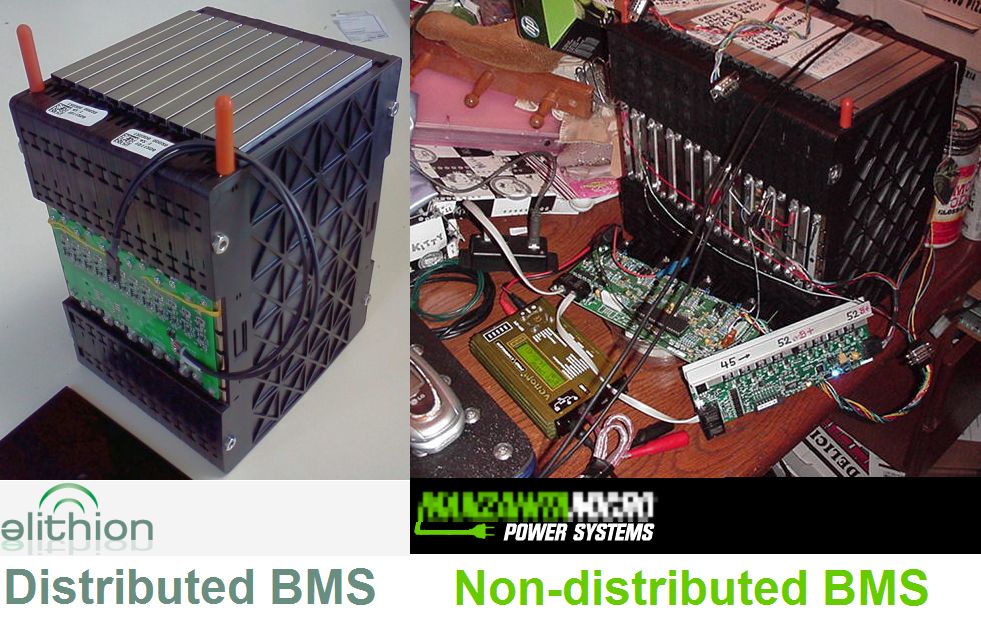

  • Distributed (a cell board is mounted on each cell: measures voltage and temperature, balances the cell)
  • Minimum number of wires in HV pack, single wire to adjacent cell boards
  • For large packs: up to 255 cells (~ 900 V), in up to 16 banks, and up to 16 strings in parallel
  • Supports all cell form factors: prismatic, small & large cylindrical, pouch
  • Supports mid-voltage Lithium-ion chemistries:
    • Lithium iron phosphate (LFP): LiFePO4 , LiFeYPO4
    • LiCoO2 (LCO) - Lithium cobalt oxide
    • LiMn2O4 (LMO) - Lithium manganese oxide
    • LiNiMnCoO2 (NMC) - Lithium nickel manganese cobalt oxide
    • LiNiCoAlO2 (NCA) - Lithium nickel cobalt aluminum oxide
  • Protects cells from over current, under/over voltage, under/over temperature
  • Dissipative (passive) balancing (top balance)
  • Sophisticated, digital technology: reports each cell's voltage and temperature
  • CAN and RS232 communications
  • Fully configurable, field programmable
  • Cable mount Hall Effect current sensor
  • Contactor drivers with precharge
  • Optical isolation between pack and low voltage circuit
  • Pack isolation loss detection (optional)
  • Compatible with these chargers
  • Compatible with these motor drivers
  • Graphics User Interface

Click to order

Lithiumate HD masterClick picture to enlarge
Lithiumate HD master:
sealed case, 8 banks, USB
Single string
Lithiumate Pro masterClick picture to enlarge
Lithiumate Pro master:
metal case, 16 banks, RS232
Single string or up to 16 strings in parallel

Comparison of HD and Pro

The Lithiumate Pro product information section has:

  • Detailed product information
  • User manuals
  • Troubleshooting guides
  • Technical specifications
  • FAQ
  • Product support information
