2CS00xxL series current sensors

In-line, 5 A and 20 A, bidirectional current sensors

This low current, bi-directional, in-line current is wired in series with the battery current (such as from a charger).

Its range may not be sufficient for much higher currents (such as to a load). In that case please see the cable mounted current sensors, with currents ranging from 50 to 600 A.

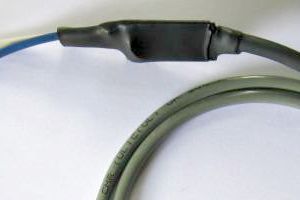

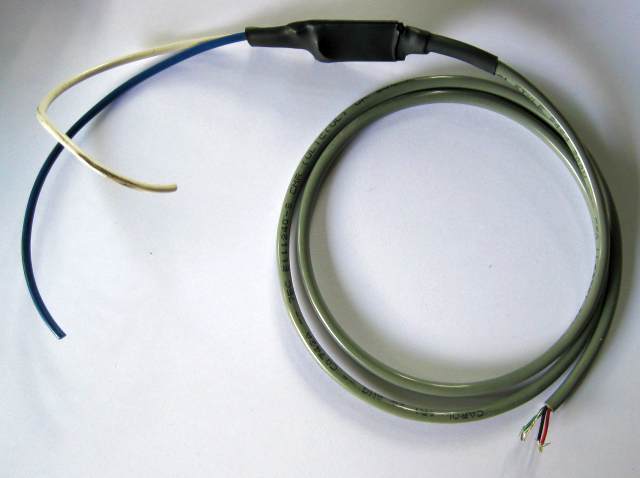

In line current sensorClick picture to enlarge
In line current sensor

Specifications

Electrical specifications

Symbol Item Conditions Min Nom Max Units
Vsply Supply voltage   5   Vdc
Vofst Voltage at 0 current   2.5   Vdc
Inom Nominal current 2CS0005L   5   A
2CS0020L 20
Imax Max sensed current 2CS0005L     13 A
2CS0020L 23
Imax-pk Max handling peak current -     60 A
XI-nom Accuracy 2CS0005L     ±75 mA A
2CS0020L ±300 mA
Gxfr Gain 2CS0005L     185 mV/A
2CS0020L 100
Visol Isolation voltage   5   kVdc

Mechanical specifications

Item Value Units
Board dimensions 1.2 x 0.5 x 0.2
30 x 13 x 5
inch
mm
Wire length 1
0.3
feet
m
Wire gauge 18
0.82
AWG
mm2
Cable length 3
1
feet
m

Ordering

  • ± 5 A, PRO: 2CS0005L (gray wire)
  • ± 20 A, Pro: 2CS0020L (white wire)
  • ± 20 A, HD: 2CS0020H (white wire, terminals for HD connector)

To order, please see the Lithiumate BMS ordering form.
