Cell board, pouch, single cell

1PO0000, standard Cell Boards for pouch cells

Each of these cell boards handles a single pouch cell
(as opposed to a 1POxxxx, which handles multiple cells per board).
  • Sufficiently flexible to fit most sizes of large pouch cells
  • Placed vertically, between cell tabs
  • Multiple cell boards are mechanically secured to each other
  • Connected to cell tabs through flags
  • One Cell Board per cell (or set of multiple cells in parallel)
    • Highest flexibility, as they may be used with any cell arrangement
  • Thin: for cells as thin as 4 mm (0.16 ")
  • Narrow: for cells with spacing between tabs as little as 21 mm (0.8 ")
  • A single communication wire is used between adjacent cells in a bank
  • These cell boards require a BMS master to form a complete BMS
Pouch cell Pouch cell with cell board Pouch cell board

back to top Applications

These cell boards can be used with a variety of pouch cells.

Many configurations are possible, as long as each cell board is mounted directly onto its cell.

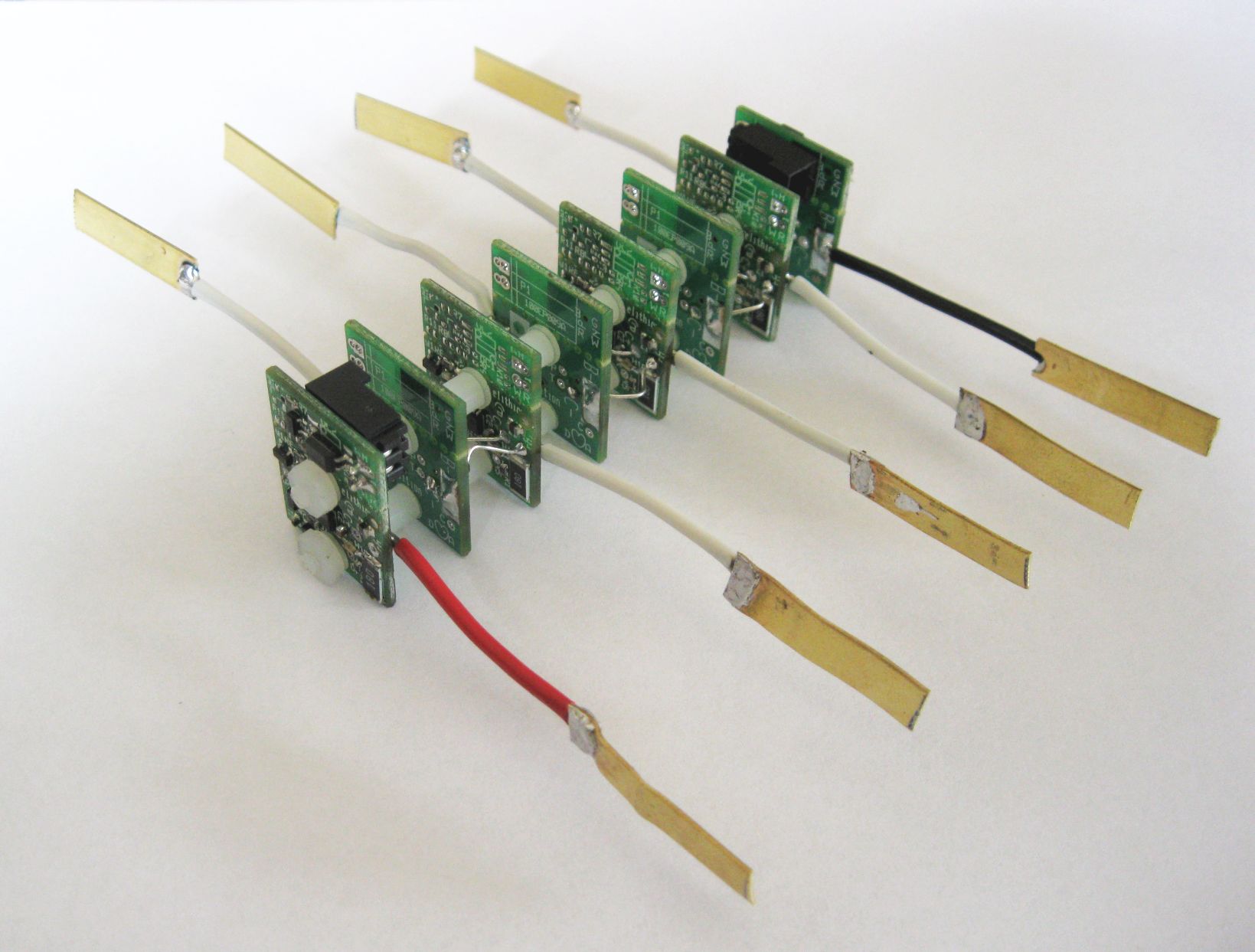

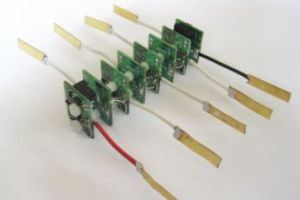

Stack of 8 pouch boardsClick picture to enlarge

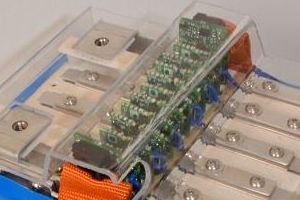

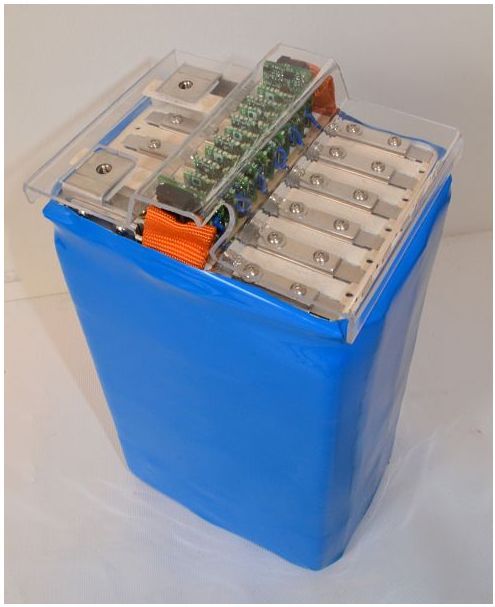

Cell board stack, 12 cells. Courtesy Formula GroupT

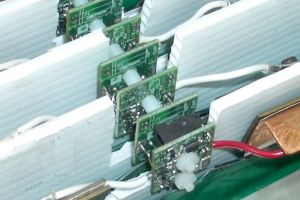

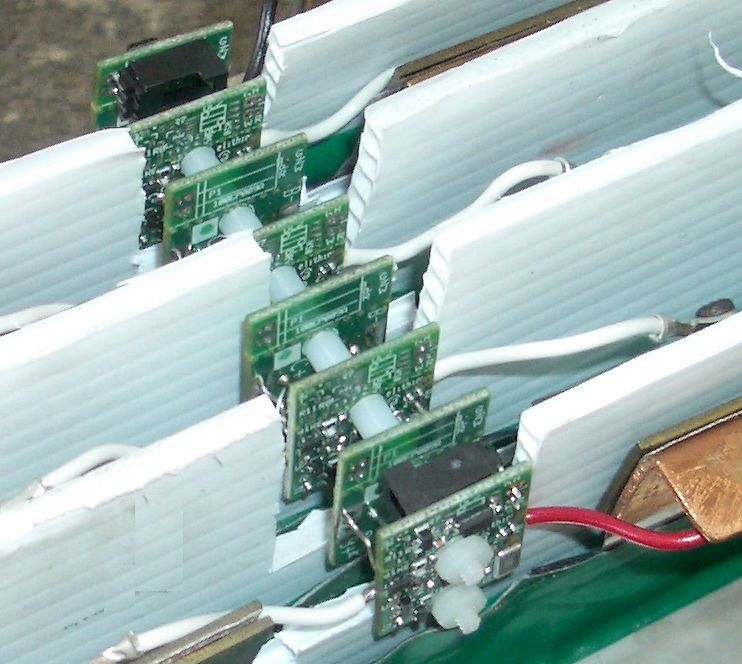

Board stack mounted on pouch cellsClick picture to enlarge
Cell boards placed between cell tabs

The stack pictured at right uses 1 positive end (reverse connector), 2 mid boards (short version), 1 negative end (reverse connector).
The stack is dropped in the space between cell tabs; the 5 copper flags are clamped to the cells' tabs.

Installation is straightforward, though be forewarned that it requires significantly more time, additional parts and skill than other Lithiumate cell boards:

  1. Place pouch cells in a stack, with alternating polarities
  2. Prepare a stack of cell boards, mounted together using spacers to match the pitch of the cells
  3. Wire the cell boards together, adding flags for the cell connections
  4. Drop the assembly in the area between cell tabs, allowing the cell board's flags to sit between cell tabs
  5. Clamp the cell tabs together, to form a series connection, as well as connecting to the cell boards' flags

For more information, see the installation instructions.

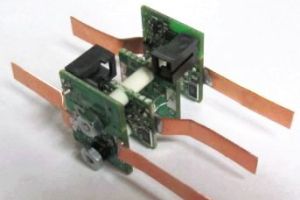

Stack of 4 pouch boardsClick picture to enlarge
Cell board stack, 4 cells, 10 mm thick

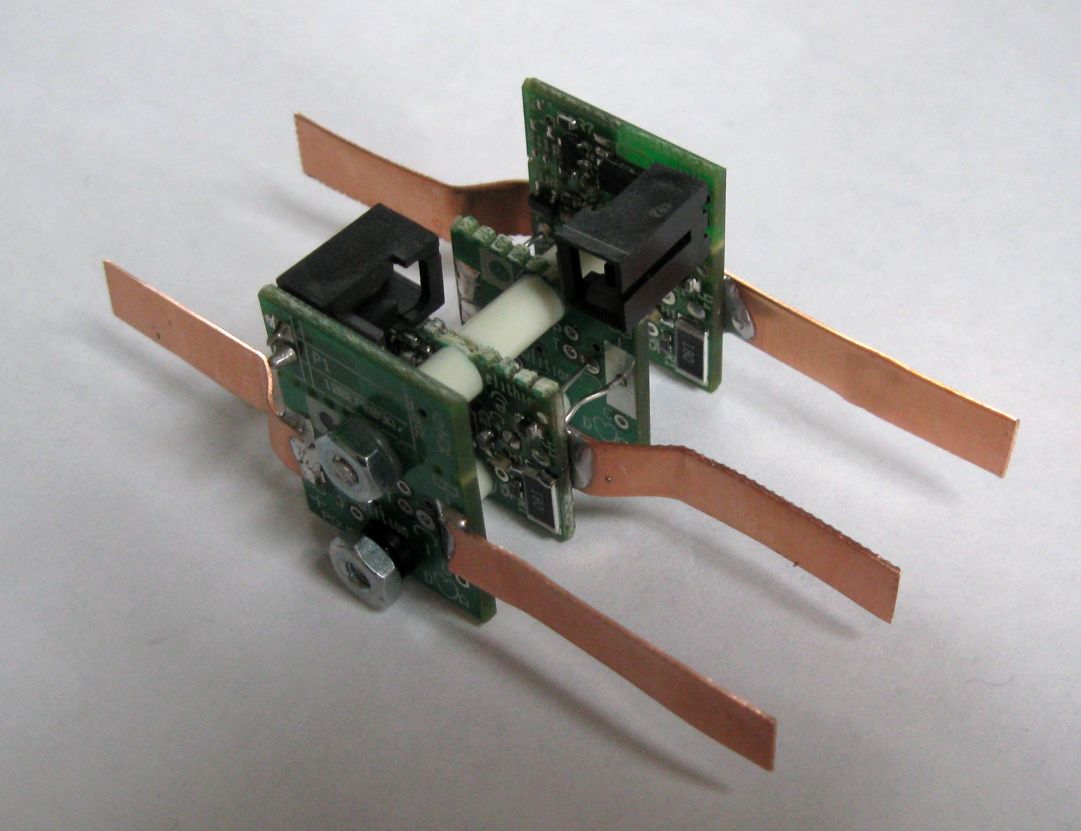

Stack of 8 pouch boardsClick picture to enlarge
Cell board stack, 8 cells, 13 mm thick

back to top Compatibility

These standard Cell Boards are compatible with a wide range of pouch cells available on the market today, including:

  • Amperex
  • Compact Power / LG Chem
  • EiG
  • Electrovaya
  • Kokam
  • Optimum
  • PHET
  • Tenergy

back to top Specifications

Electrical Specifications

General specifications.
For detailed specifications, please see the Lithiumate™ Manual).
Symbol Item Conditions Min Nom Max Units
Vrange Cell voltage sensing range - 2.09 - 4.54 V
Vaccur Cell voltage sensing accuracy Within Vrange - ±10 ±15 mV
Isply Cell load current Stand-by - - 2.0 µA
Active,
1-reading / sec
- 1.5 2.0 mA
Balancing - 200 - mA
VISOL Isolation voltage End cell boards
Between battery & low voltage
- 2500 - V

Mechanical Specifications

These are the smallest cell boards available.

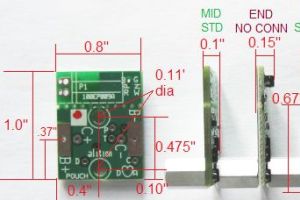

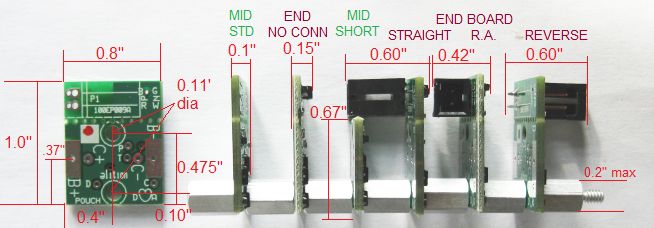

Pouch cell board mechanical dimensionsClick picture to enlarge
Dimensions of various cell boards
Item Dimension
PCB width 0.8" / 20.3 mm
PCB Height Standard 1.0" / 25.4 mm
Short 0.675" / 17.1 mm
Thickness mid-bank 0.10" / 2.5 mm
end board, no conn. 0.15" / 3.8 mm
end board, right angle conn. 0.42" / 10.7 mm
end board, straight conn. 0.60" / 15.2 mm
Mounting holes Diameter 0.110" / 2.8 mm
Spacing 0.475" / 12.1 mm
Max spacer diameter 0.20" / 5.1 mm

back to top Selection

Banking

Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)

Connectors

In order to offer the greatest flexibility, end boards come standard without a connector on them, though 2 loose connectors are included for each: a straight connector and a right angle connector.
End boards with a connector already soldered, of either type, and placed on either side, are available with quick turnaround.

Part numbering

Part number: 1PO0000M:

  • 1 = Cell Board
  • PO = Pouch
  • 0000 = pitch: n.a.
  • M = mid bank (available:M = mid-bank; P = positive end; N = negative end)

Models

Parts in bold are stocked.

(*) Comes with 2 loose connectors (1 straight, 1 right angle), for you to use as appropriate.

NOTE: Negative end cell boards rev D and above (manufactured since Jan 2014) are not compatible with rev C & D Masters (manufactured before Nov 2009)

Positive end

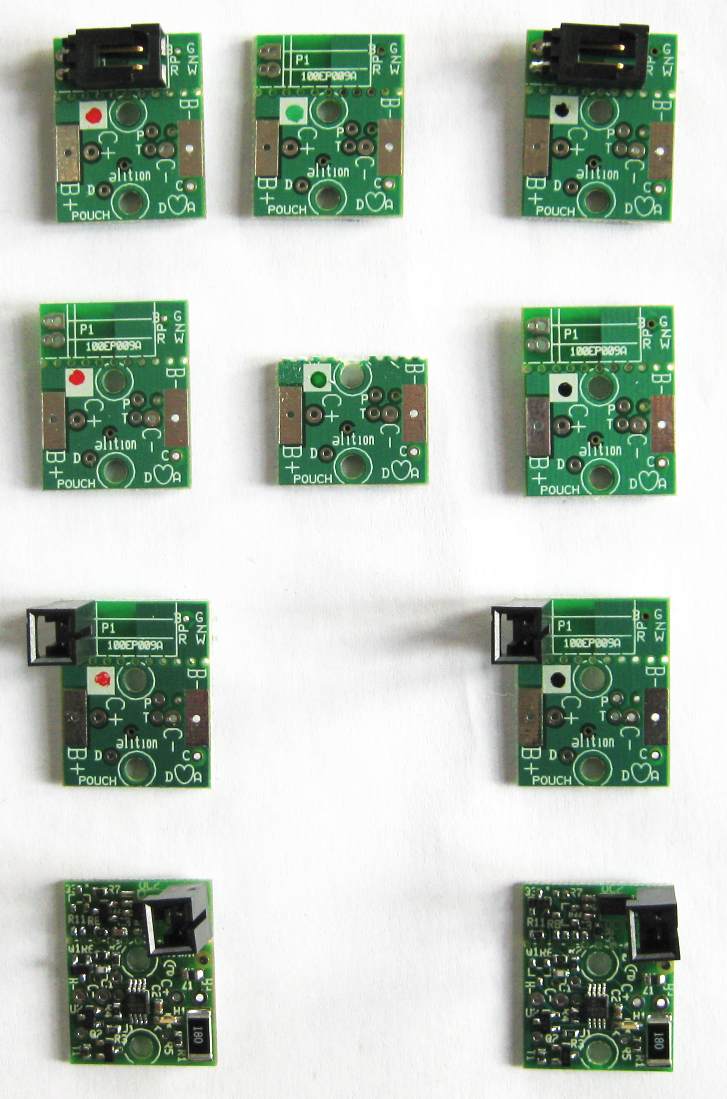

loose connectors* no connector r.a. connector straight connector reverse connector
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
1PO0000P Special order
Or you can make it yourself from a 1PO0000P

Negative end
(for Lithiumate Pro only)
loose connectors* no connector r.a. connector straight connector reverse connector
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
1PO0000N Special order
Or you can make it yourself from a 1PO0000N

Mid-bank
standard short
Pouch cell board, singleClick picture to enlarge
Pouch cell board, singleClick picture to enlarge
1PO0000M Special order
Or make from a 1PO0000M

back to top Ordering

To order, please see the Lithiumate BMS ordering form.
