Lithiumate harnesses

For cell boards and for Lithiumate HD Master

back to top Lithiumate HD Master

These optional harnesses connect to the two connectors of a Lithiumate HD Master, simplifing installation.

HarnessClick picture to enlarge

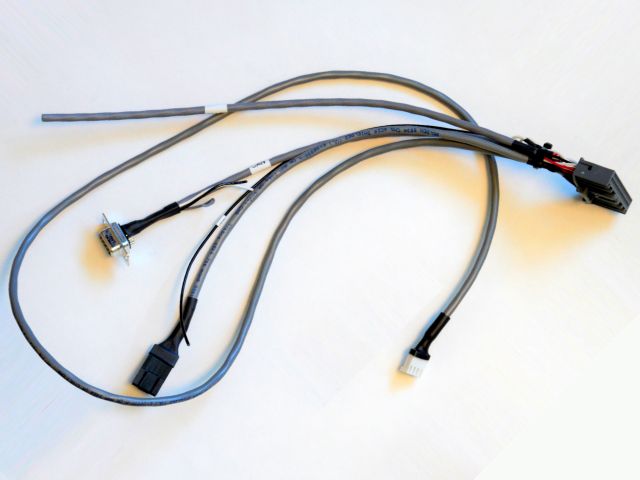

2PH4000H, 40-pin Lithiumate HD Master harness
HarnessClick picture to enlarge

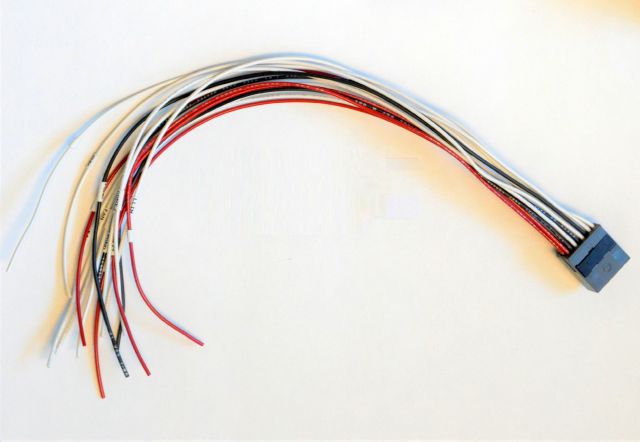

2PH1600H, 16-pin Lithiumate HD Master harness

Ordering

Part number Mate Notes Wire lengths*
2PH1600H 16-way connector 3 foot / 1 meter
2PH4001H 40-way connector 1 bank Banks: 1 foot / 30 cm
CAN: 1 foot / 30 cm
Current sensors: 3 foot / 1 meter
D/A outputs: 3 foot / 1 meter
2PH4002H 2 banks
2PH4004H 4 banks
2PH4008H 8 banks
2PH4021H 20 A current sensor, 1 bank
2PH4022H 20 A current sensor, 2 banks
2PH4024H 20 A current sensor, 4 banks
2PH4028H 20 A current sensor, 8 banks

(*) Orders for custom wire lengths gladly accepted.

To order, please see the Lithiumate BMS ordering form.

back to top Y-cables for banks of cell boards

These Y-adapter cables are connected to a bank connector on a Lithiumate Pro BMS master, and to the two end cell-boards in a bank.

They are available is various lengths (to match the distance between the positive and negative cell boards in a bank).

Extender cables of various lengths are also available, to go between the BMS master and the Y-adapter.

Y-adapter

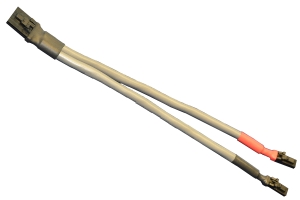

Bank Y-adapter

Ordering

Part number Positive end to negative end Either end to 5-pin connector
2PH0001Y 1 ft / 0.3 m 0.5 ft / 0.15 m
2PH0002Y 2 ft / 0.6 m 1 ft / 0.3 m
2PH0003Y 3 ft / 1 m 1.5 ft / 0.5 m

To order, please see the Lithiumate BMS ordering form.

back to top Extenders for banks of cell boards

These cables are placed between a bank connector on a Lithiumate Pro BMS master, and a Y-adapter to the two end cell-boards in a bank. These Y-adapter cables are connected to a bank connector on a Lithiumate Pro BMS master, and to the two end cell-boards in a bank.

They are available is various lengths.

Y-adapters of various lengths are also available, to go between an extender cable and the end boards.

Extender cable

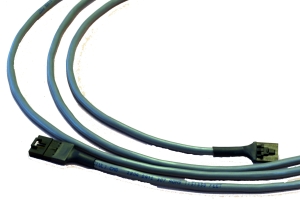

Bank Extender cable

Ordering

Part number Length
2PH0004X 4 ft / 1.3 m
2PH0006X 6 ft / 2 m
2PH0008X 8 ft / 2.6 m
2PH0012X 12 ft / 4 m

To order, please see the Lithiumate BMS ordering form.



In this page:
Lithiumate HD Master
Bank Y cables
Bank extenders
